Renogy Wanderer 10A PG PWM Solar Charge Controller Common Positive

Renogy Wanderer Charger Controller

Renogy BT-1 Bluetooth Module

• Wirelessly monitor and control compatible solar charge controllers via Bluetooth
• Communication Protocol: RS232
• Port Type: RJ12
• Signal range：82ft
• Optional component requires a separate purchase.

Renogy Wanderer 10A solar charge controller integrates efficient PWM charging to increase battery life and improve system performance. Designed with a simple interface for ease of use the controller uses an LCD to notify users of battery information. This advanced charge controller is designed for off-grid solar applications and can be used with a 12V/24V battery or battery bank (Auto-Recognition is only for non-lithium batteries). The compact size of the controller makes installation a breeze.

• Rated Charge Current: 10A
• Max Gauge Size: Up to 12AWG
• Self-Consumption: <10mA
• Max. PV Input Voltage: 50 VDC
• Working Temperature: -31°F - 113°F
• Dimensions: 4.68 x 2.95 x 1.08 in
• Weight: 0.27 lbs
• Grounding Type: Common Positive

Intelligent protection against reverse polarity, overcharging, short-circuit, and reverse current.

Smart 4 Stage PWM charging (Bulk, Boost, Float, and Equalization) increases battery life.

Blacklit LCD screen for displaying system operation, diverse load control and error codes.

Compact in size makes it easy to install virtually anywhere.

1. LCD Screen
2. Select Button
3. Enter Button
4. USB Ports
5. Load Terminal
6. Battery Terminal
7. PV Terminal
8. RS232 Communication Port

Integrated RS232 port allows communication with BT-1 Bluetooth module (Not Included) and usage of Renogy DC Home smartphone app.

1. Sealed
2. Gel
3. Flooded

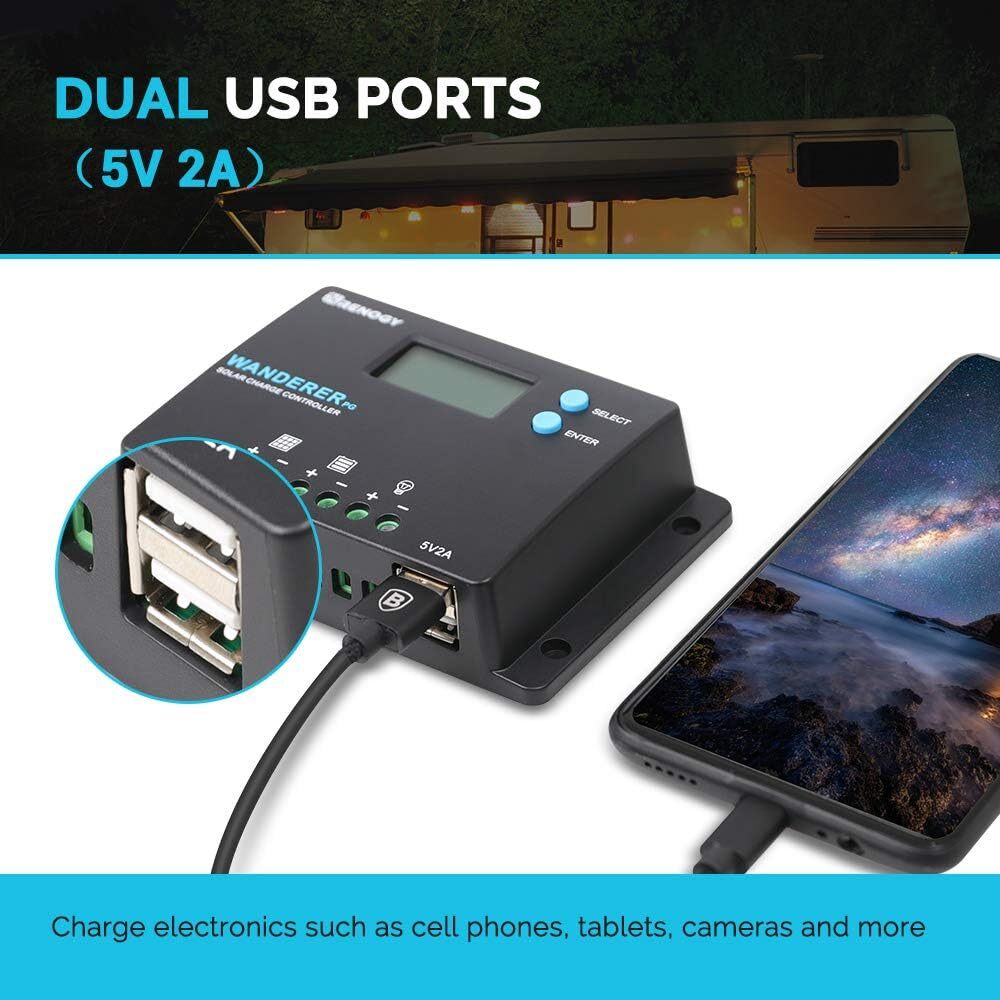

5V 2A USB Ports
