Renogy Combiner Box 5 String PV Grid Solar Panel w/ Built-in DIN Rails

Name: Renogy Combiner Box 5 String PV Grid Solar Panel w/ Built-in DIN Rails Labels
Brand: Renogy
SKU: v1|286149739929|0
Price: 130.12 USD
Availability: InStock

Labels

USD $130.12

Condition : New

Free Shipping

{{variant_type_name}} :

SKU: RPVCOM5SMN7P-US This site contains affiliate links for which we may be compensated Categories: Home & Garden / Home Improvement / Electrical Supplies / Alternative Energy Supplies / Solar Power Supplies / Solar Power Accessories

Notify me when the price drops

We will email you if we find a lower price on this product!

Target price (USD) $

Description

You may also like

Renogy Deep Cycle AGM Battery 12 Volt 200Ah 2000A Max Discharge Current Off-Grid
359.99 USD
Free shipping
Renogy 200W ShadowFlux Anti-shading N-Type Solar Panel 25% High-Efficiency
215.99 USD
Free shipping
Renogy 2PCS Bifacial 590 Watt N-Type Monocrystalline Solar Panel High-Efficiency
1079.99 USD
Free shipping
Renogy 400W Solar Panel Blanket Portable Solar Suitcase Foldable Solar Panel
399.99 USD
Free shipping
Renogy Solar Panel 200W Watt 24V Monocrystalline PV Off-Grid Power Module
169.99 USD
Free shipping
Renogy 12V 300Ah Core Mini Deep Cycle LiFePO4 Lithium Battery Backup Power IP65
759.99 USD
Free shipping

Specifications

Maximum number of input circuit: 5

Maximum output current: 100A

Rated operating voltage: 250V

Protection level: IP55

Dimensions :17.1 x 15.0 x 8.8 in

Accessories

5 Pin busbar
Mechanical Lugs*2
Key
Labels*2

INDOOR and OUTDOOR

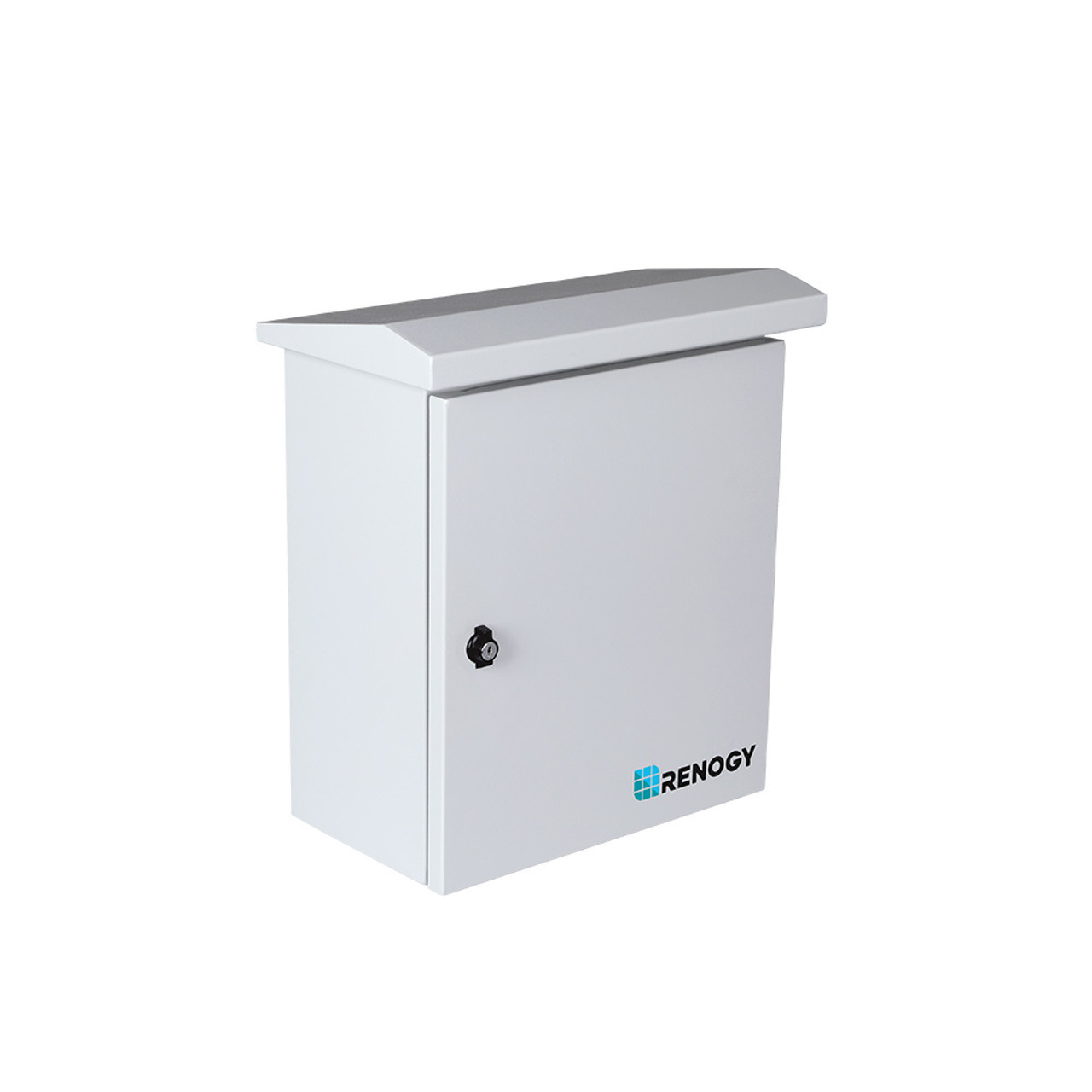

The Renogy 5 Strings Solar Combiner Box is the ideal solution to combine inputs from up to 5 strings of solar panels into a single output. It accepts up to five 1P miniature circuit breakers and one 2P surge protection device for improved safety of the solar system.

Equipped with a rain cap and rubber seals, the grey steel enclosure is designed to survive in outdoor environments.

5 TO 1 CONNECTION

Combining up to 5 solar panel inputs into one, and each input can be equipped with a circuit breaker which can protect wires and devices.

SAFETY PROTECTION

The product accepts up to five 1P miniature circuit breakers and one 2P surge protection device. They can provide overload/short circuit protection and lightning protection for improving the safety of the solar system.

Please note all the circuit breakers and surge protection device are not included.

IDEAL FOR OUTDOOR

Protection level at IP55. It is designed with a rain cap, the double slope design can be more effective to prevent from wind and rain, and makes the outdoor system use safer. The door is equipped with rubber seals which can prevent rain from entering the box.

PRODUCT DISPLAY

The diagram detailed shows all components of the box, besides these, waterproof strain reliefs or conduit are reserved for installation.

EASY TO USE

The product offers a built-in standard DIN rail for easy installation. Mounting holes are reserved on the back for fixationto make sure the box is firm and stable.

When you lock the door, twist the black ring first and then lock it with the key.

When you open it, use the key first, and then twist the black ring.

WHAT'S IN THE BOX

The diagram shows all the accessories of a solar combiner box.

The diagram shows both the inside and outside connections of a combiner box. Renogy provides everything you needed for this connection and enjoys the fun of DIY solar!

FAQ

If the ground wire is attached from the combiner box to the grounding rod, do the panels still need to be grounded?

If the panels are grounded to the same rod, I suppose you do not need to add a second grounding. In the case of an electrical storm, the grounding of the combiner panel is of the upmost importance.

Can I use different wattage panels to connect to this box?

No, only panels with the same voltage and wattage can be connected to the same box.

Under what circumstances is this used?

It is mainly used in home kits to combine up to 5 solar panel inputs into one single output, and it can be installed either indoor or outdoor.

Does a surge protection device have to be installed?

Yes, we suggested installing it in order to avoid device damage caused by lightning.
